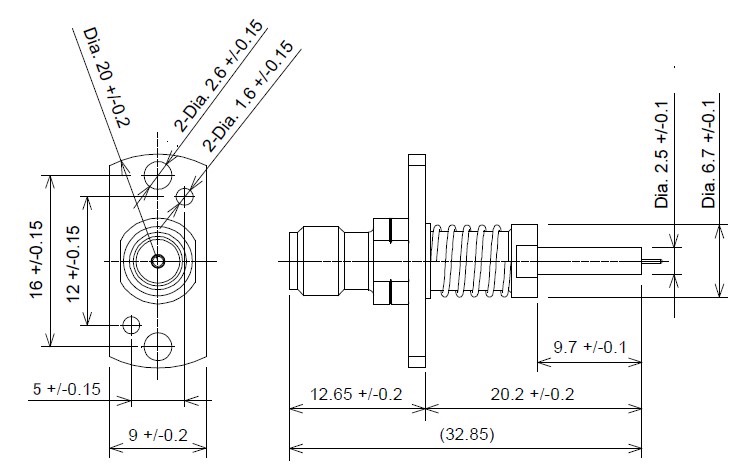

KNE126320

1. Electrical Data

    A.      Frequency Range ---- DC-6GHz

    B.      Impedance---- 50 Ohms

    C.      VSWR---- < 1.6 max.(DC ~ 3GHz) , 1.7 max.(3 ~ 6GHz)

    D.       Dielectric withstanding voltage ---- No evidence of breakdown

    E.       Insulation resistance ---- 500 Mega-Ohms

    F.      Center contact resistance ---- 25.0 mini-Ohms

    G.      Outer contact resistance---- 20.0 mini-Ohms

2. Mechanical Data

     A.      Durability (Mating / Unmating ) : 10000  cycles

     B.      Temperature Range : -40°  ~ 90°
