KNE126048

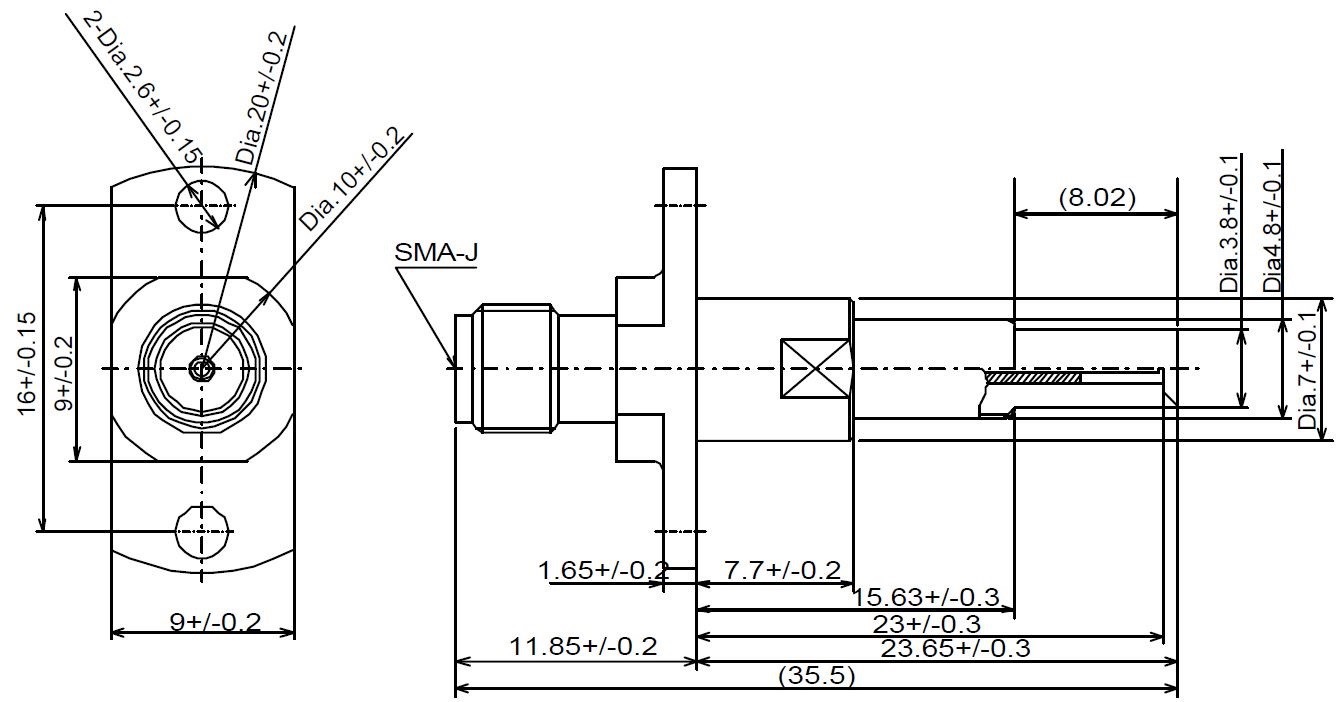

1.  Electrical Data

     A.     Frequency Range ---- DC-6GHz

     B.     Impedance---- 50 Ohms

     C.     VSWR---- < 1.6 max.(DC ~ 3GHz) , 2.0 max.(3 ~ 6GHz)

     D.     Dielectric withstanding voltage ---- No evidence of breakdown

     E.      Insulation resistance ---- 500 MW minimum

       F.      Center contact resistance ---- 25.0 mini-Ohms

     G.      Outer contact resistance---- 20.0 mini-Ohms

     H.      Insertion loss ---- 0.6 dBmax.(DC ~ 3GHz) , 1.5 dBmax.(3 ~ 6GHz)

2.  Mechanical Data

      A.      Durability (Mating / Unmating ) : 1M cycles

      B.      Temperature Range : -40° ~ 90°
