KNE126064

产品浏览

产品品牌 :	Kener
产品型号 :	KNE126064
产品规格 :
产品价格 :
库存数量 :	10000
产品描述 :	KNE126064 RF test probe for MM8130-MM8430 , replace MM126064
产品询价 :
返回上一页

1. Electrical Data

A.      Frequency Range ---- DC-6GHz
B.      Impedance---- 50 Ohms
C.      VSWR---- < 1.3
D.       Dielectric withstanding voltage ---- 250 Vrms
E.       Insulation resistance ---- 500 Mega-Ohms

F. Center contact resistance ---- 25.0 mini-Ohms

G. Outer contact resistance---- 20.0 mini-Ohms

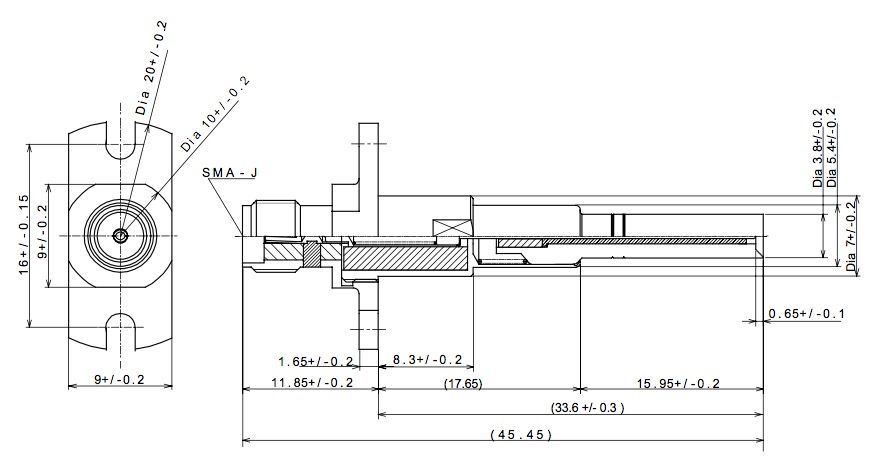

2. Mechanical Data

A. Coupling Method --- Threaded

B. Durability (Mating / Unmating ) : 10000 cycles

C. Temperature Range : -40° ~ 90°
